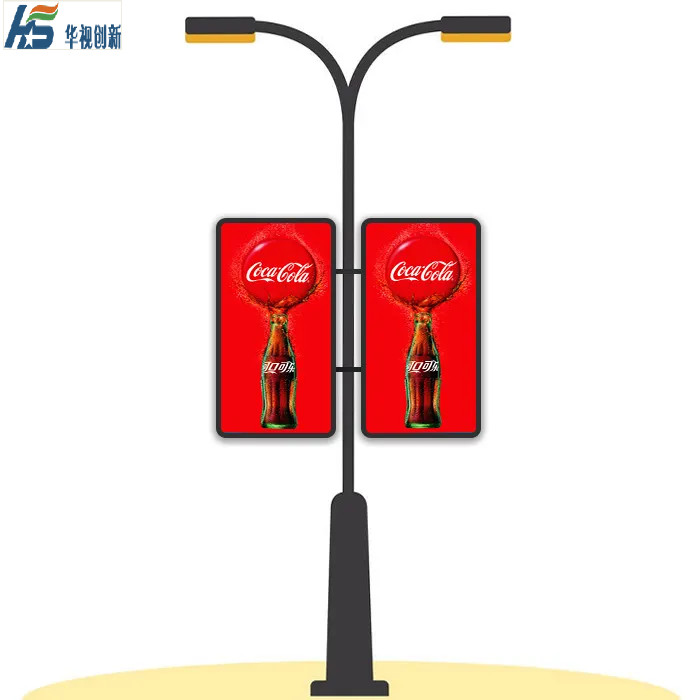

Smart Pole Light LED Signs LED Traffic Screen
Product Details:
| Place of Origin: | SHENZHEN |
| Brand Name: | HSLED |
| Certification: | CE ROHS FCC |
| Model Number: | P3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | Wooden case/Honeycomb Box/Fight case |
| Delivery Time: | 10-15workdays |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000set |
|
Detail Information |
|||
| Product Name: | Pole Led Display | Application: | Outdoor |
|---|---|---|---|
| Pixel Pitch: | 3mm | LED Type: | SMD1921 |
| Show Size: | 576*1152mm | Refresh Rate: | 1920Hz/3840Hz |
| Brightness: | 6500cd/sqm | Power Consumption: | MAX: 700 / AVE: 230 |
| Input Voltage: | AC 110V~220V+/-10% | Packaging: | Flight Case,Wooden Case |
| Highlight: | led pole screen,led light sign,Road Led Display |
||
Product Description
The Advantage of Light Pole LED Display Screen
1. Intelligent Control:
Embedded LAN, WIFI and 3G intelligent management core modules, allowing ads to be controlled as they wish.
2. Easy To Install:
Once installed successfully, the AD picture and text information changed casually, saves the trouble of dismantling and installing billboards, but also saves resources.
3. High Protection Grade High protection level
Before and After IP65/IP54, safe for outdoor use in all kinds of weather.
4. Easy To Maintain
Can be side open, back open, front maintenance (will be launched) and other maintenance methods, so that installation has more
options.
5. Applicable Occasions
Applicable to pedestrian streets, light boxes, highways, communities and other places.
Lamp pole screen-Model/Size:
| screen on street pole | |||||
| Model | Cabinet size | Display resolution | Brightness | Refresh Rate | power |
| P2.5 | 320*960mm | 128*384 | 5000-5500cd | 1920/3840hz | MW Power Supply |
| P2.5 | 480*960mm | 192*384 | 5000-5500cd | 1920/3840hz | MW Power Supply |
| P2.5 | 640*1280mm | 256*512 | 5000-5500cd | 1920/3840hz | MW Power Supply |
| P3 | 384*768mm | 128*256 | 5500-6000cd | 1920/3840hz | MW Power Supply |
| P3 | 576*1152mm | 192*384 | 5500-6000cd | 1920/3840hz | MW Power Supply |
| P3 | 768*1344mm | 256*448 | 5500-6000cd | 1920/3840hz | MW Power Supply |
| P3 | 768*1536mm | 256*512 | 5500-6000cd | 1920/3840hz | MW Power Supply |
| P3.076 | 320*960mm | 104*312 | 5000-5500cd | 1920/3840hz | MW Power Supply |
| P3.076 | 480*960mm | 156*312 | 5000-5500cd | 1920/3840hz | MW Power Supply |
| P3.076 | 640*1280mm | 208*416 | 5000-5500cd | 1920/3840hz | MW Power Supply |
| P3.33 | 400*800mm | 120*240 | 5500-6000cd | 1920/3840hz | MW Power Supply |
| P3.33 | 400*1000mm | 120*300 | 5500-6000cd | 1920/3840hz | MW Power Supply |
| P3.33 | 600*1200mm | 180*360 | 5500-6000cd | 1920/3840hz | MW Power Supply |
| P3.84 | 400*800mm | 104*208 | 5500-6000cd | 1920/3840hz | MW Power Supply |
| P3.84 | 400*1000mm | 104*260 | 5500-6000cd | 1920/3840hz | MW Power Supply |
| P3.84 | 600*1200mm | 156*312 | 5500-6000cd | 1920/3840hz | MW Power Supply |
| P4 | 512*1024mm | 128*256 | 5500-6000cd | 1920/3840hz | MW Power Supply |
| P4 | 768*1408mm | 192*352 | 5500-6000cd | 1920/3840hz | MW Power Supply |
| P4 | 768*1536mm | 192*384 | 5500-6000cd | 1920/3840hz | MW Power Supply |
| P4 | 640*1280mm | 160*320 | 5500-6000cd | 1920/3840hz | MW Power Supply |
| P4 | 800*1600mm | 200*400 | 5500-6000cd | 1920/3840hz | MW Power Supply |
Note: Select large screen for headlight pole and small screen for small light pole. The lamp post is 4 meters, 6 meters, 8 meters, 10 meters.
4-meter lamp post with dimensions of 480 * 960mm
6-meter lamp post with dimensions of 600 * 1200mm
8-meter lamp post with dimensions of 768 * 1344mm
10 meter lamp post with dimensions of 800 * 1600mm
If you need to customize LED display screens of different models and sizes, please feel free to consult our sales team.
Product Description:
Factory new design P3 mm outdoor full color high refresh led pole screen for street,highway,airport and other any place.
Product features:
1, Intelligent control:Embedded LAN, WIFI, 3G,4G intelligent management core modules, so that advertising can be controlled at will.
2,Save worry and effort:Once the installation is successful, the graphic and text information of the advertisement can be replaced at will, which saves the trouble of disassembling and assembling the billboard and saves resources.
3,High protection level:Front and rear IP65 high protection level, safe to use in all kinds of outdoor weather

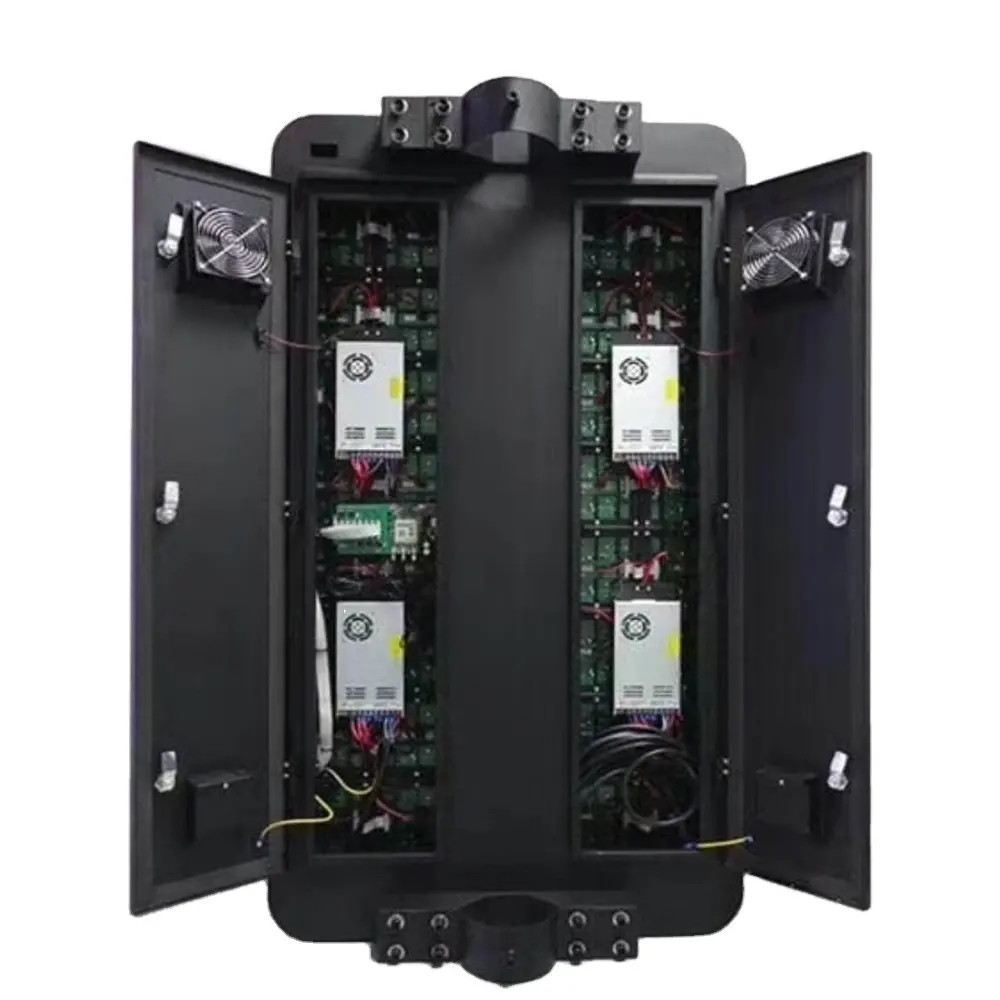

4, Easy to maintain:Maintenance methods such as side opening, rear opening, and front maintenance (coming soon) allow more options for installation
5, Control system:Support 3G/4G/WIFI connection,remote cluster control is available,you can update the program any time
6,Maintenance:Modular design,LED point light source,support single module repair and single pixel repair-saving a lot of cost for you.
7,Customized :Single side/double sides for option,GPS orientation,camera to real-time monitor ,brightness and temperature
8,The screen body adopts an all-aluminum structure, which has good heat dissipation effect. The inner super-thick plate ribs are anti-stretching and shock-proof, and the service life can be as long as ten years.
Company Introduction:
Shenzhen H&S Innovation Technology Co., Ltd (HSLED), a professional LED display factory who specializes in R&D / DESIGN / PRODUCTION / SALES, was Established in 2013. HSLED is a large professional full color led display screens manufacturer in Shenzhen, China, who is able to offer high quality led displays at very competitive prices.
Our main products are:Outdoor 3D LED Display Screen,Outdoor 3D LED Display Screen:LED Pole Screen:LED Circular Screens:Round Led Diaplay:Indoor LED Display...
With an outstanding business performance and good social reputation, HSLED’s led displays have been sold all over the world both in and out of China to America, Germany, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Brazil, Spain, Thailand, Dubai, India etc. more than 50different countries.
We provide sound solution , technical support and perfect after-sales services with two years warranty policy. Moreover, all our products are certified with CE, RoHS, FCC, CCC certificates. And our factory is approved by ISO9001:2008 / ISO9001:2015 quality and management system. If time permits, your visit to our company and production factories is more than welcomed.
FAQ:
Q1: How are these LED display controlled?
RE: The led display will be controlled via a software. Before delivery, our engineer will very well program &setting the screen and safe the setting in the display and the end users could have an turn-key led display.
Q2: What the software your company uses for your product?
RE: We mainly use Novastar / Colorlight and Linsn.
Q3: Can I have a sample order for Led display ?
RE: Yes , we welcome sample order to check and test quality. Maxed samples are acceptable.
Q4: What about the lead time ?
RE: Our regular production time is 15-20normal days against advance payment, for huge quantity, please check with our sales manager.
Q5: Do you have any MOQ limit for Led display order ?
RE: Module sample is accepted in our company, so we don’t have MOQ request for led displays.
Q6: What is the warranty for your led display?
Re: The standard warranty is 2years, while it is possible to extend the max. warranty to 5years with extra cost.
Q7:What after service can provide?
Re: We have professional engineers providing?24h online technical support and by email; We also send technical personnel to the scene in customers significant activities.
Q8: How to be our distributor?
Re: Please check with our sales manager for details.
Q9:How to maintenance led screen?
Re: In usually every year to maintenance led screen one time, clear the led mask, checking the cables connection, if any led screen modules fail, you can replace it with our spare modules
Q10. How can I place the order?
Re: Firstly, please provide the details of your requirements as clear as possible, so we can send you the offer at the first time.
Q11. What if I don't know how to install the screen?
a. We will provide your details drawing for installation led screen, But you need provide us on-site picture for installation place.
b. We provide training 2 people in the factory for free.
c. We can send our engineers to your country to guide how to install the screen.
Q12. What if I don't know how to maintain the screen?
We will provide you with operation manuals and software when you place an order, and we can help you debug remotely.
Q13. How to deliver the my goods?
It depends on your budget and the date you need the led screen. Regularly, the led displays are shipped by sea, if the quantity is less and you need it urgently, we can arrange air-shipping for you.
