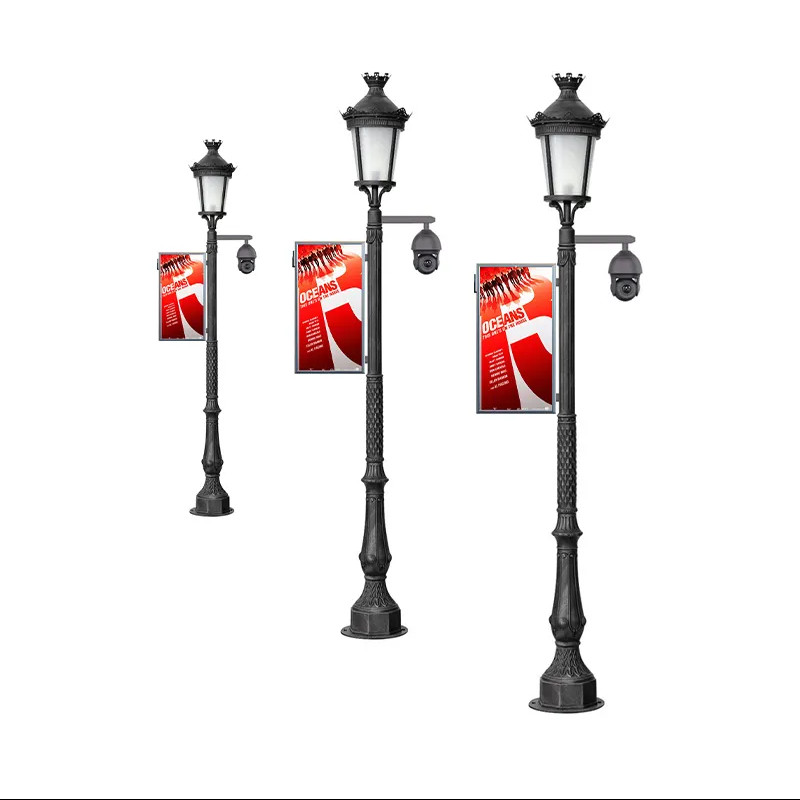

P4 Outdoor Street Light Pole LED Display Standing Street LED Screen

Product Description

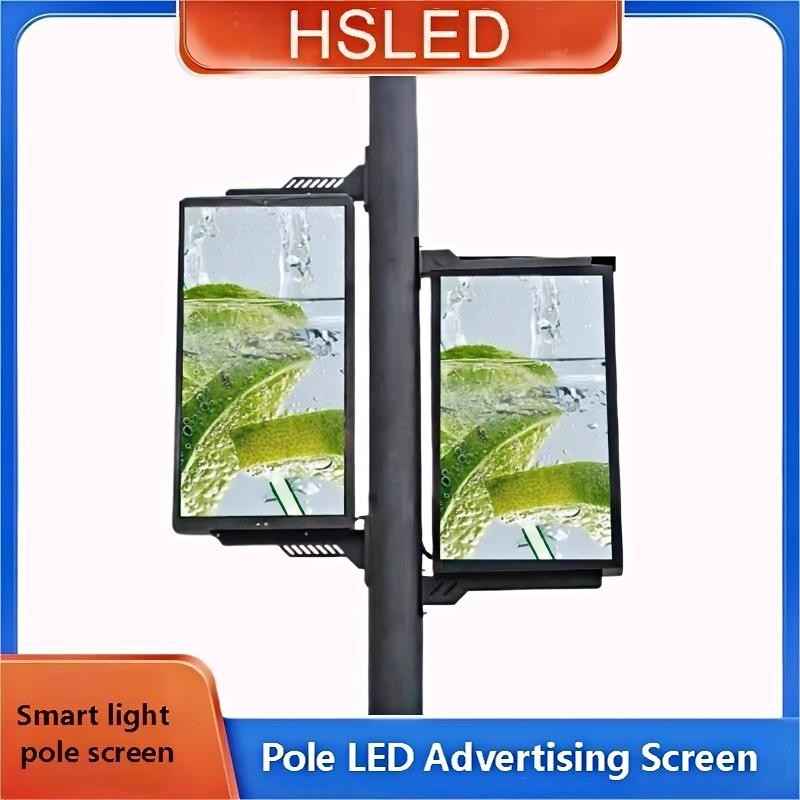

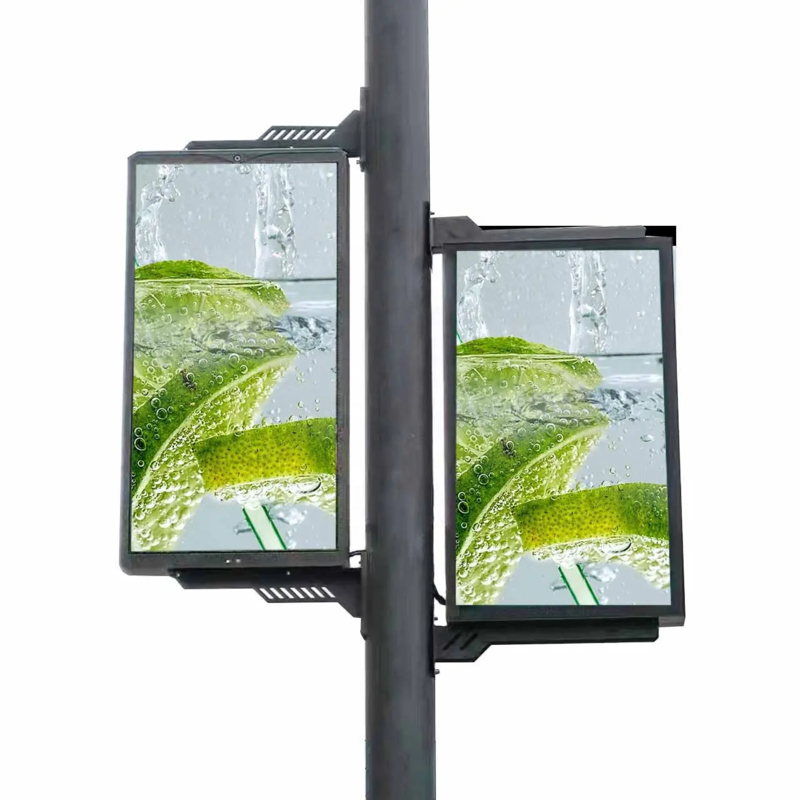

Street light pole LED Double-sided display screen

Outdoor Full Color LED Sign Lighting Display P3 P4 P5 P6 P8 Street Pole Advertising for Shopping Malls and Street IP65 Rated

Wireless 4G Wifi Waterproof P2.5 P3 P4 Outdoor Double Sides Advertising Lamp Pole Led Display Screen

Advertising Lamp Pole Led Display  Application :

Smart pole digital led display is a special application for city streets, shopping mall, commercial center, exhibition etc. It installs on the pole, like a street lamp led light pole. The most attractive advantage is shocked advertising effect when all the pole led display change images or video at the same time with wireless 3G/4G connection and cloud control system.

Pole Led Display Specification :

Main features



Street light pole led display has advantages of small screen size for high space utilization, can be designed as simultaneously

control for mass screen numbers via internet broadcast technology. They can be mounted the light poles of a certain street and

create a scale effect in the area for road guide, traffic broadcasts, information release as well as advertising promotion and

soon.



Multi Control Way



Street Light Pole LED Display With Remote mass control: 3G/4G control without distance limit, massive LED display control

synchronously;Free WiFi: People nearby LED display search its WiFi,identify and log in, then surf on the internet freely;



Multi Installation Way



Smart Pole LED display LED Screen supports multi installation with side hanging installation, middle hanging installation, roof hanging installation, mounting installation available. Each installation is very easy and fast, 2-3 persons can finish the installation in a few minutes easily, save time and cost greatly.



Great Advertising Results



Just imagine, what a big visual shock to audiences it is if dozens or hundreds of light pole screens are loop playing a same ads at the same time. It absolutely will enhance the audiences memory about the ads, that’s to say light pole led display can be as excellent as a big outdoor led display.



LED Light Pole Display Vs Traditional Light Pole Billboard



LED light pole display features clearer picture quality, high definition, synchronized broadcast and much more. And yes, they are cheaper than traditional light pole billboards. You may find dozens of LED light pole displays in price of single traditional billboard.





Outdoor pole LED screen Specification:



Module Number	PH3	PH4	PH5	PH6
Pixel Pitch	3mm	4mm	5mm	6mm
Physical Density	111111 pixels/m2	62500 pixels/m2	40000 pixels/m2	27777 pixels/m2
Led Arrangement	3 in 1SMD	3 in 1SMD	3 in 1 SMD	3 in 1 SMD
Module Resolution	64*64 pixels	64*32 pixels	64*32 pixels	32*32 pixels
Module Dimensions	192*192 mm	256*128 mm/32060mm	320*160 mm	192*192 mm
Cabinet Resolution	N/A	N/A	N/A	N/A
Cabinet Dimensions	custom size	custom size	custom size	custom size
Cabinet Weight	N/A	N/A	N/A	N/A
Brightness	5500nits	5500 nits	5500 nits	5500 nits
Max Power Consumption	270w/panel	270w/panel	270w/panel	270w/panel
Ave Power Consumption	60w/panel	60w/panel	60w/panel	60w/panel
Viewing Angle	160°(W) 160°(H)	160°(W) 160°(H)	160°(W) 160°(H)	160°(W) 160°(H)
Operating Power source	110-240V AC 50-60Hz	110-240V AC 50-60Hz	110-240V AC 50-60Hz	110-240V AC 50-60Hz
Operating Temperature	-20℃～+50℃	-20℃～+50℃	-20℃～+50℃	-20℃～+50℃
Refresh Rate	3840-7680Hz	3840-7680Hz	3840-7680Hz	3840-7680Hz
IP Rating	IP65	IP65	IP65	IP65
Signal Input Source	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI	Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
Certificate	ETL, FCC, CCC, RoHS,CE	ETL, FCC, CCC, RoHS,CE	ETL, FCC, CCC, RoHS,CE	ETL, FCC, CCC, RoHS,CE

Outdoor pole LED screen Features:

1. Rich functionality to meet various needs

The lamp post screen effectively integrates multiple needs such as smart transportation, municipal publicity, security monitoring, commercial advertising, environmental monitoring, 5G base station application, information promotion, and advertising release. One pole is versatile, reducing the cost of repeatedly building multiple poles and further beautifying the city.

2. Cluster management for easy maintenance

LED pole screens are electronic devices that can be centrally and uniformly controlled, remotely managed, and displayed with one click through computers and mobile phones. Ordinary billboards can only be replaced one by one, with much higher labor, material, and time costs compared to LED smart light pole screens.

3. Small space occupation and low safety hazards

Compared to large outdoor LED screens, LED pole screens occupy less space, beautifying urban spaces and reducing safety hazards. Outdoor LED pole screens need to have waterproof, dustproof, UV resistant and other functions, with a protection level usually reaching IP65 or above, and can cope with various harsh weather conditions. In addition, they also have protective properties such as waterproof, explosion-proof, and lightning protection, ensuring stable operation in various environments.

4. Low power consumption, more energy-efficient

The LED pole screen supports various installation methods such as column and horizontal bar side placement, central suspension, etc. The size can be customized according to needs, with low power consumption and more energy saving. The LED pole display screen adopts advanced LED lighting technology and energy-saving design. Outdoor LED pole displays can effectively reduce energy consumption and meet the requirements of low energy consumption in smart cities

5. Higher investment returns

By using LED pole screens, the displayed advertising content can be changed at any time, which is equivalent to increasing advertising space. The more advertising spaces there are, the lower the marginal cost and the higher the return on investment.

6 .Aesthetics and technological sense:

The LED pole screen has a stylish and lightweight appearance, which can seamlessly integrate with smart street lights and meet the aesthetic requirements of modern cities. This design not only enhances the beauty of the city, but also strengthens the sense of technology.
The brightness of outdoor LED pole screens is usually above 5500cd, and can even reach over 10000cd, ensuring clear visibility even in strong light. This high brightness allows advertising information to be clearly seen under various lighting conditions.

Outdoor Street Light Pole LED Display Screen Workshop production pictures

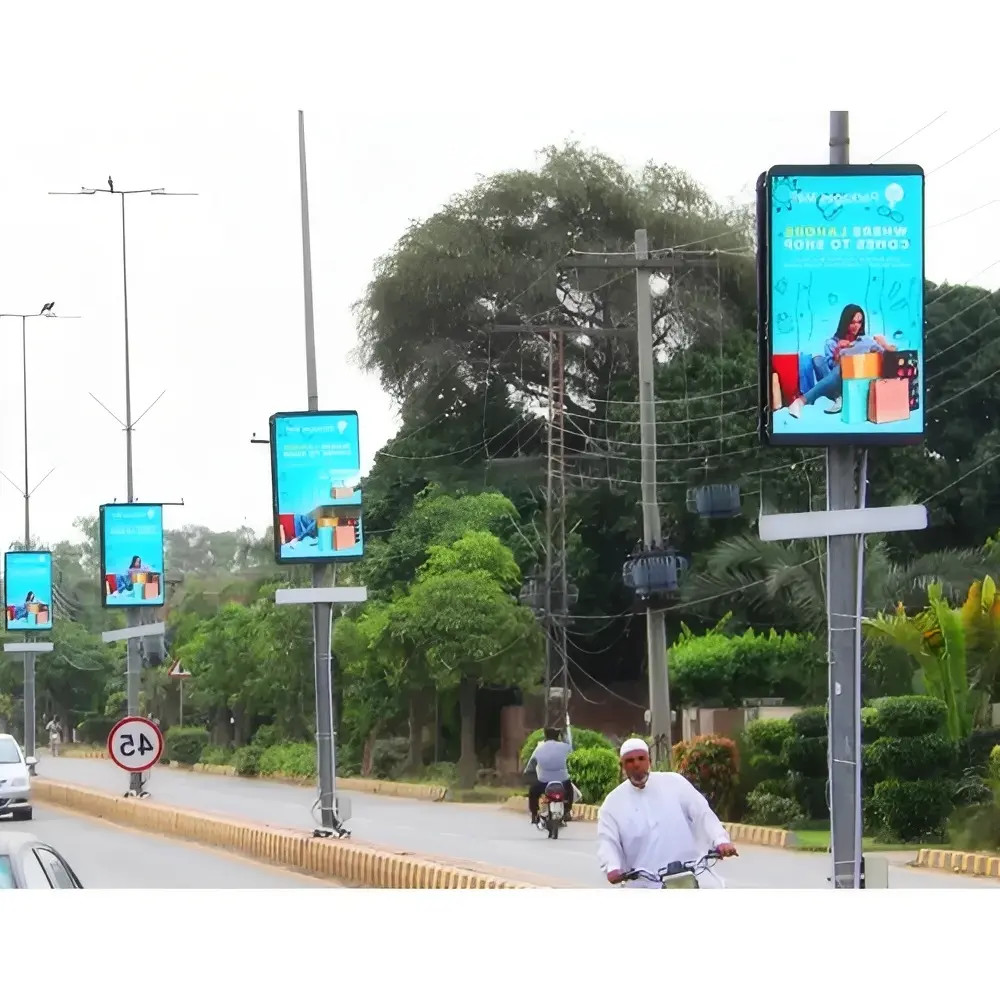

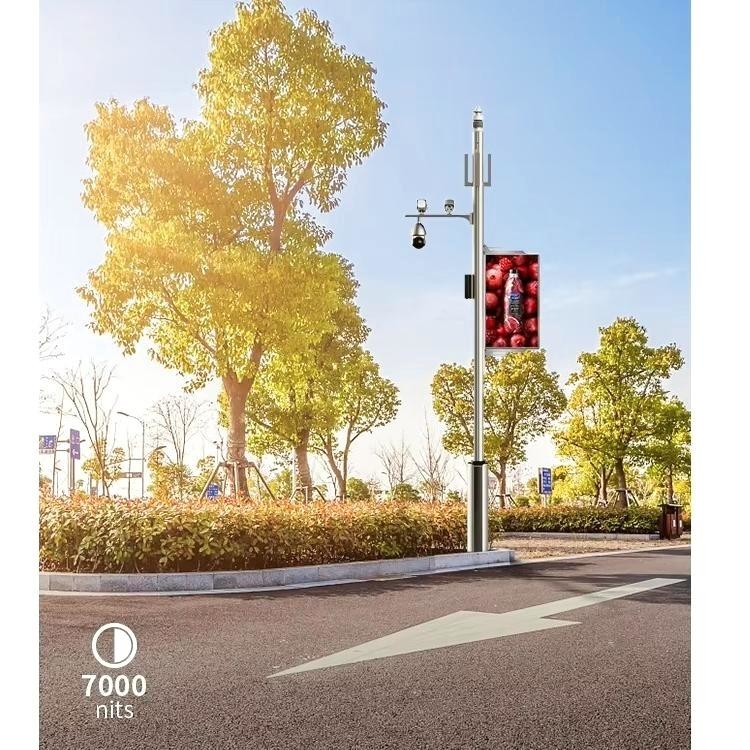

Outdoor  LED Display Installation of lamp posts pictures

Outdoor 3D LED Display Screen:

These screens are designed to provide an immersive and engaging visual experience outdoors. With their advanced 3D technology, they can display stunning graphics, videos, and animations that capture the attention of passersby. They are perfect for advertising, events, and entertainment venues.

LED Poster Display /LED Mirror Screen:

These screens combine the functionality of a traditional poster with the dynamic capabilities of an LED display. The LED poster screens can display digital posters, animations, and videos, while the LED mirror screens offer a reflective surface when turned off and can display content when turned on. They are ideal for retail stores, restaurants, and other commercial spaces.

LED Pole Screen:

The LED pole screens are designed to be mounted on poles or columns, making them perfect for displaying information or advertising in high-traffic areas. They can be used in streets, malls, and other public spaces to provide real-time updates, promotions, and announcements.

LED Circular Screens:

The LED circular screens are unique and eye-catching, making them perfect for creating a focal point in any space. They can be used for branding, advertising, and displaying information in a circular format.

Round Led Diaplay​:

Our creative LED display screens offer endless possibilities for customization and creativity. They can be designed to fit any shape, size, and specification, making them perfect for unique and eye-catching displays. Whether you need a custom-shaped screen for a specific event or a unique design for your brand, we can help you bring your vision to life.
