outdoor street lighting pole led display P4 Light Pole Led Screen
Product Details:
| Place of Origin: | SHENZHEN |
| Brand Name: | HSLED |
| Certification: | CE ROHS FCC |
| Model Number: | P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | Wooden case/Honeycomb Box/Fight case |
| Delivery Time: | 10-35workdays |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000set |
|
Detail Information |
|||
| Model Number: | Light Pole LED Display | Color: | Full Color Led Display |
|---|---|---|---|
| Pixel Pitch: | P4 | Module Size: | 320*160 Mm |
| Cabinet Size: | 640*1120mm | Brightness: | 5500cd/sqm |
| IP Grade: | IP65 | Best View Distance: | 4-200m |
| Signal Input Source: | Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI | ||
| Highlight: | Outdoor Pole Led Screen,smart street poles,Smart LED Signs Billboard |
||
Product Description
light pole led display screen Outdoor Advertising Lighting Pole LED Display

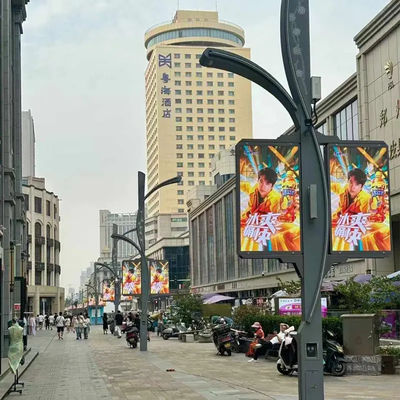

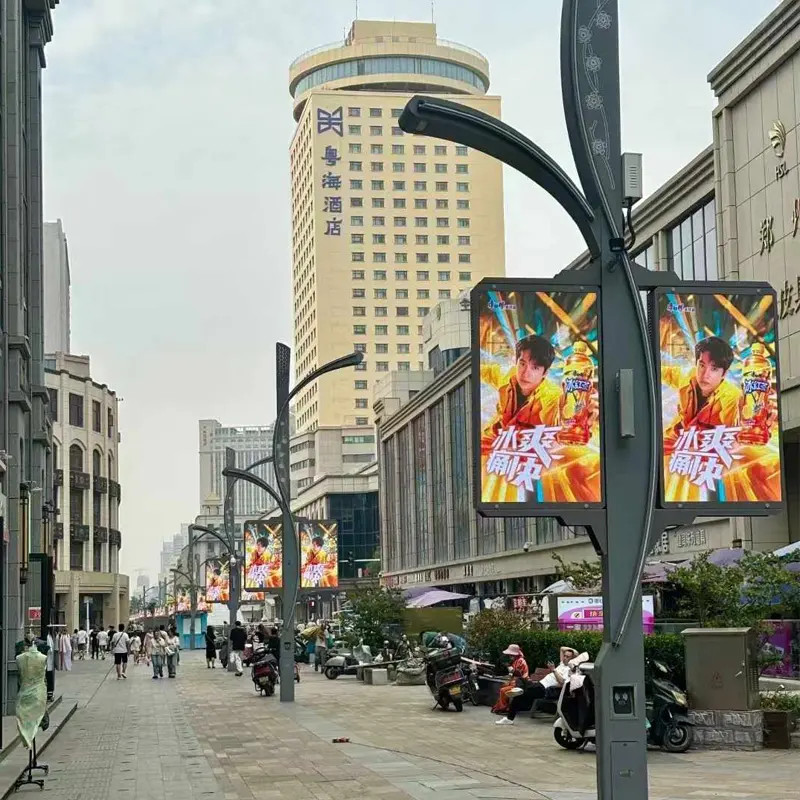

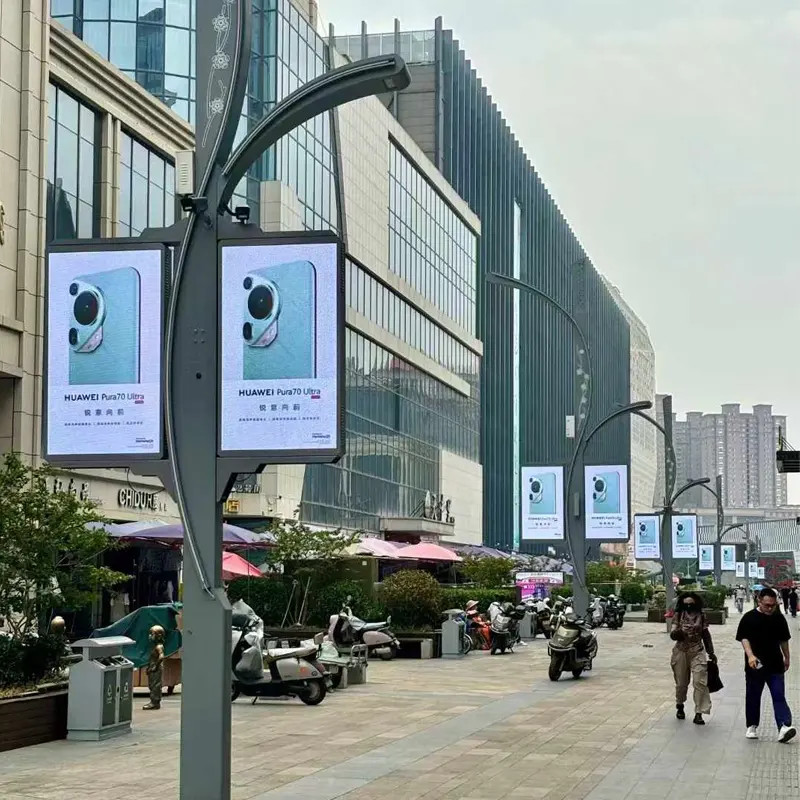

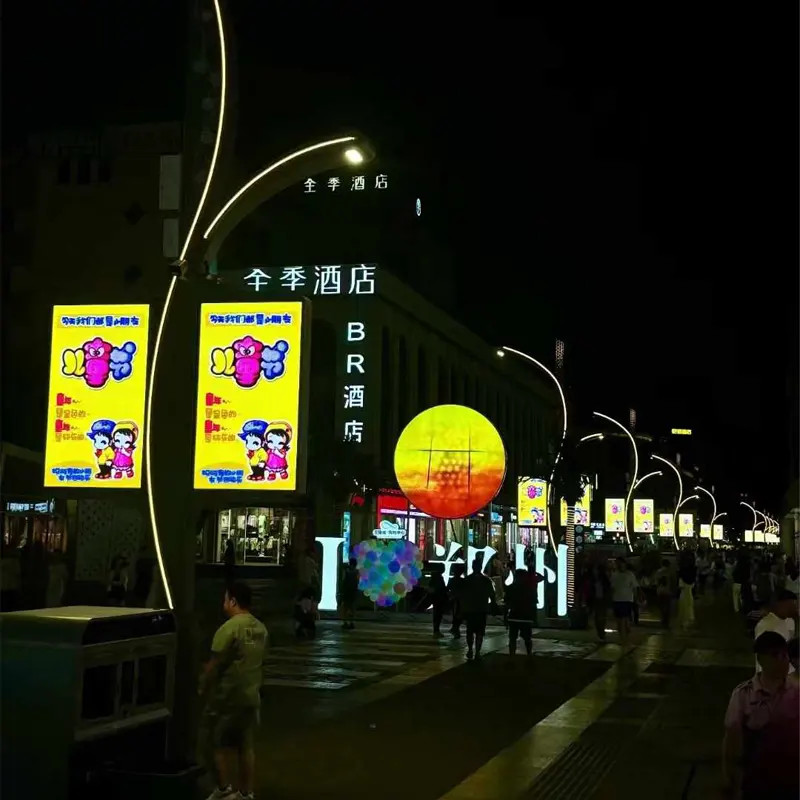

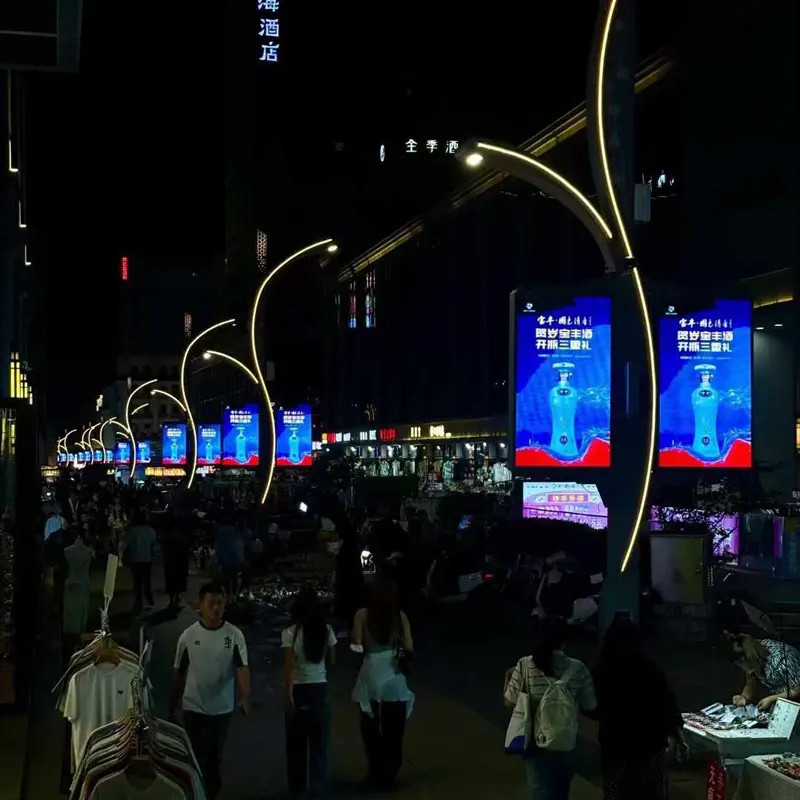

A commonly seeing LED display on the road, what might catch your eyesight many times, as pictures shows below: they are street pole LED display.
Light pole LED screen Product advantage:
1. Innovative Design, Elegant appearance, with acrylic and Aluminum alloy material.The whole screen can be seamless Mosaic,flatness,there will be no gap
2.High brightness, anti-sunshine, Anti-dust and waterproof. Used for outdoor. Control power supply constant power chip,double capacitance high power.stable heat dissipation,long life,more urable.
3.Easy installation, can be hanging , side mount and pretended installation. Use national standard all copper power supply wire,anti-oxidation.anti-aging,waterproof,flame retardant,can be used for a long time without damage .
4. Dynamic display, animation , pictures, etc.Using 6-pin copper bracket lamp beads,the current uniform brightness.long useful life,beautiful color without shad.

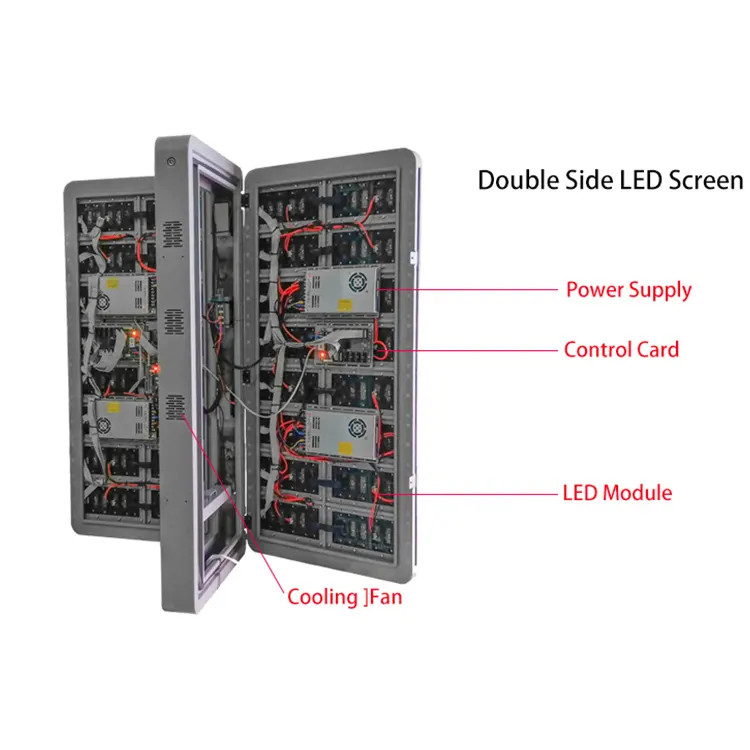

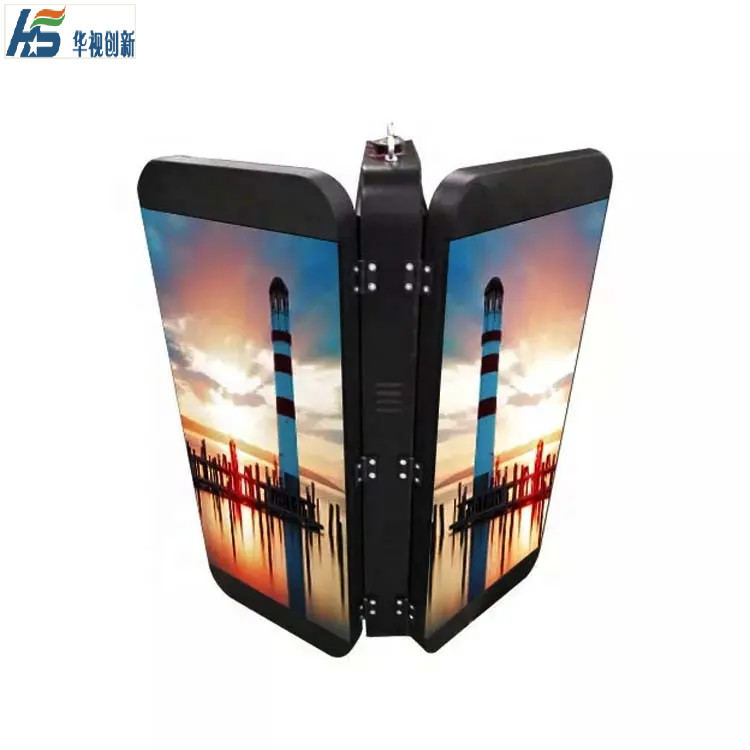

5. Single and double sided display.Use angle extension technology to ensure the image is not distorted and the color is not distorted.
6.Synchronization and asynchronous control, also can be controled by Mobile phone.
The Advantages for Pole LED Display:
|
Remote Management
|
Remote cluster control, no need to operate on spot
|
|
Multi-display Synchronization
|
Multiple LED displays play the same content at the same time, enhance the advertising effect.
|
|
Brightness Adjustment
|
Automatic brightness or timing brightness adjustment, high brightness during the day, low brightness at night, make energy saving possible.
|
|
Environment Monitor
|
Support wind speed, wind direction, temperature, humidity, PM2.5, noise and other real-time environmental monitoring.
|
|
High Resolution
|
Smart Pole LED Display is designed for further distance viewing, but nowadays small pixel screen became the new trend, with those
fine pixel like P2.5/ P3/P3.33/P3.91/P4/ P4.81/P5, it becomes suitable and fantastic for closer viewing. No granular sensation and clear in image. |
|
Stable and High Waterproof Level
|
To make it resist the outdoor worn and erosion, glue filling is strictly required in producing, to make it resist water erosion in heavy rain or storm, also performs better in fast radiate.
|
|
Energy Saving
|
Match with the new energy saving tech, allocate the energy save driving IC, change the power supply into common cathode type (4.2V lower voltage driving) , the display could save around 30%-45% electricity. Also the intelligent power off control mode, could satisfy your 7×24 hours energy saving request.
|
|
Size Customized
|
According to customers needs and expectation, we could provide possible solution and design plan as reasonable and suitable as we could. The cabinet size can be customized and adjustable, could be made bigger or smaller all as your wish.
|
Parameters:
Outdoor Waterproof LED Display full color Poster Display Stands street light pole led display screen |
|||||
| Use environment | Ooutdoor led display | ||||
| Product model | Ph2.5 | Ph3 | Ph3.84 | Ph4 | Ph4 |
| Pixel spacing | 2.5mm | 3mm | 3.84mm | 4mm | 4mm |
| Display size | 480mm*800mm | 576mm*1152mm | 600mm*1200mm | 640mm*1120mm | 512mm*1024mm |
| Brightness | ≧5500cd-6200cd | ≧5500cd-6200cd | ≧5500cd-6200cd | ≧5500cd-6200cd | ≧5500cd-6200cd |
| Waterproof grade | IP65 | IP65 | IP65 | IP65 | IP65 |
| Weight | about17.6kg | about29kg | about31.9kg | about32kg | about25.6kg |
| Refresh rate | 3840hz | 3840hz | 3840hz | 3840hz | 3840hz |
| Control mode | Asynchronous Control (3G/4G/WI FI) | ||||
| Input power supply | AC100/240V50/60HZ | ||||
| working temperature | -40°C~ +70°C | ||||
| Working humidity | 10-90% RH | ||||
| Service life | More than 100000 hours | ||||
If you need LED pole screens of different models/sizes, we can customize them according to your needs.
Our Advantages:
Over 10 Years Experience
Abundant experience enables us to serve you the perfect LED display solutions in an effective manner.
110+ Countries Solutions
HSLED has already served around 10,000 LED display projects and accumulated a wealth of experience and reputation.
8,000㎡ Factory Areas
HSLED has advanced production equipment, professional testing equipment and strict uality.
5000㎡+ Production Capacity
The high production capacity ensures HSLED outstanding delivery capacity to meet your market demand.
7/24 Hours Service
HSLED provides you with one-stop services covered from installation to training and maintenance, insisting on customer-oriented corporate culture and attitude.
3 Years Warranty & 5% Spare Parts
3 years warranty guarantees you reassuring user experience. We always care about your satisfaction.
FAQ:
Q1. Can I have a sample order for LED display?
A: Yes, we welcome sample order to test and check quality. Both for module or whole screen.
Q2. What about the lead time?
A:LED Modules always have stock.5 working days can deliver cargo.
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1 square meter or a module checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: By express,sea,air ,train
Q5. How to proceed an order for LED display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products
